Shower toilet cubicle

Self contained leak free shower toilet cubicle

The all-in-one Snowdon shower toilet cubicle

Offers virtual en-suite facilities nearly anywhere in the home.

The Snowdon Shower Toilet is customisable shower cubicle that features a WC.  Built to your specification, you can include various features such as a roof with lighting, extraction ventilation, a hand wash basin, electric or mixer shower equipment and various grab rails.

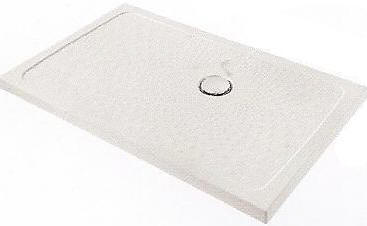

The Snowdon shower toilet cubicle is based on choice of shower tray. The first type (Slimline 35) is an ultralow profile model that presents a very low step in height. The tray can be rebated into the floor to offer level access. A low profile tray requires the waste to run below floor level.

The second type (Mendip) is a 90mm high model that enables the waste to run above floor level. A higher step in, but useful if you can't or don't want to run pipework in or under the floor level. Both tray types have optional ramps available to facilitate wheelchair access.

Cubicle sizes begin as small as 1250 x 710 so the Snowdon Shower Toilet Cubicle is a super solution where space is limited or to replace a standard bath.

Choose your half-height door type. Either a pair of single panel doors or a pair of bi-folding doors.

Snowdon shower toilet requires no tiling and is easy to install

The Snowdon shower toilet cubicle requires no tiling and can be installed quickly without the need for major alterations to your building. It can be moved or removed just as easily leaving little evidence it was ever there (a great bonus if requirements change).

Easy to install, easy to remove

All-in-one shower toilet cubicles are a great idea when planning an en-suite or annex be it permanent or temporary for elderly relatives. Delivered to site in component form ready to be assembled and installed, the Snowdon shower toilet minimises disruption to you home and will uninstall leaving little evidence it was ever there.

Services and drainage

The Snowdon shower toilet will require 'water to' and 'waste away' from the cubicle. Personal preference and site conditions will determine the type of shower equipment, basin taps and waste services. Proximity to a soil stack will help you decide whether to use a small bore macerator. Whatever your needs there is a solution. Please don't hesitate to call if you'd like to discuss this aspect further.

Wall hung WC pan for a clear shower floor

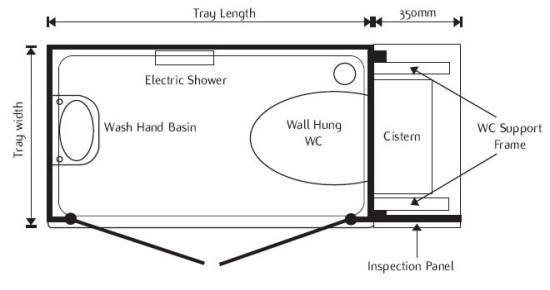

The Snowdon shower toilet cubicle incorporates a wall hung WC which is supported on a metal frame concealed behind the wall at one end of enclosure.

The supporting framework also carries the hidden cistern, which is concealed behind and accessed via an inspection panel.

The support frame and cistern are typically hidden behind an inspection panel which is supplied. An additional 350mm should be allowed for addition in length when calculating.

Waste from the shower toilet can be plumbed into existing 100mm soil pipework or through small bore pipe via a macerating pump - meaning the cubicle can be installed almost anywhere.

Shown: Half height single panel pivot door option meeting in the centre with straight curtain rail and curtain, wall hung WC, support frame and concealed cistern. A wash hand basin and monobloc lever taps can be specified as options.

Configure the Shower Toilet Enclosure to your requirements

Because of the many options available you may find it easier if we provide you with a quotation based on your required configuration. Simply specify your requirements and leave the rest to us. Quotations are entirely free and without obligation. If you would like help or further advice don't hesitate to call.

To assist, the following table shows the price for the basic shower toilet cubicle with wall-hung WC, support frame, cistern with push button and half-height doors. Various additional items may be required which can be selected from the price table below. (e.g. wash hand basin, monobloc basin mixer or taps, shower equipment electric or mixer, inspection panel etc)

Because the Snowdon Shower Toilet is built to your specification you can completely customise your shower toilet cubicle. Please give us a call if you would like to discuss your requirements further.

SNOWDON Shower toilet cubicle price list with half height doors and Slimline 35 shower tray   ex VAT inc VAT 1200 X 750 Snowdon shower toilet cubicle, Slimline 35 tray, Option G,K or M doors £2772.33 £3326.80 1200 X 900 Snowdon shower toilet cubicle, Slimline 35 tray, Option G,K or M doors £2772.33 £3326.80 1300 X 750 Snowdon shower toilet cubicle, Slimline 35 tray, Option G,K or M doors £2772.33 £3326.80 1500 X 750 Snowdon shower toilet cubicle, Slimline 35 tray, Option G,K or M doors £2772.33 £3326.80   SNOWDON Shower toilet cubicle price list with half height doors and Mendip shower tray   ex VAT inc VAT 1250 X 710 Snowdon shower toilet cubicle, Option G,K or M doors, Mendip tray £2,873.13 £3,447.76 1250 X 830 Snowdon shower toilet cubicle, Option G,K or M doors, Mendip tray £2,873.13 £3,447.76 1500 X 710 Snowdon shower toilet cubicle, Option G,K or M doors, Mendip tray £2,873.13 £3,447.76 1500 X 830 Snowdon shower toilet cubicle, Option G,K or M doors, Mendip tray £2,873.13 £3,447.76   Optional Additions and extras   ex VAT inc VAT Wash hand basin with 2 taps £179.68 £215.62 Wash hand basin with mixer tap £199.62 £239.54 Wash hand basin with Redring heater tap £245.33 £294.40 MIRA ATL Flex 9kW Electric shower poa   TRESPA roof panel (includes lights) £255.15 £306.18 Extract fan kit (Roof panel required) £160.61 £192.73 2M ACCESS RAMP PROFILE (Slimline 35) poa   MENDIP TRAY RAMP 900mm WIDE poa   Waste pump (Shower tray) poa   Macerator waste pump (WC) poa

To summarise:

Simply decide:

1. the size of shower toilet cubicle you require (the footprint size based on shower tray size)

2. the type of shower tray you require - low level or Mendip (see description below)

3. The configuration of shower doors (see options)

then add in things like:

  grab rails (As required/Optional)

  shower equipment (electric or mixer type equipment)

  roof panel (if required)

  extractor fan/light (if required)
